? High precision and reliability ? Anti electromagnetic interference ? Simple structure and installation

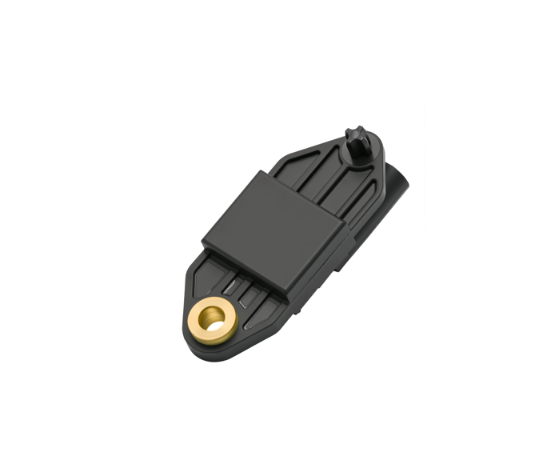

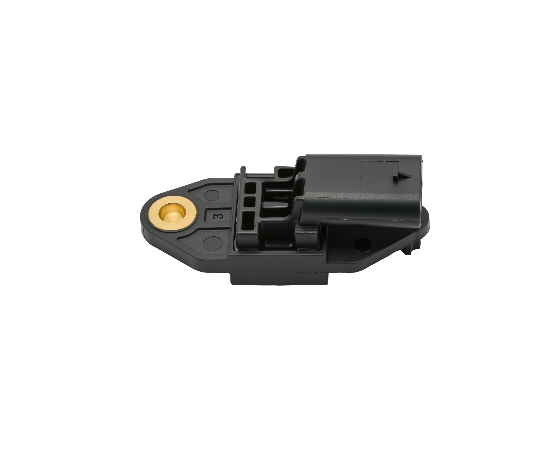

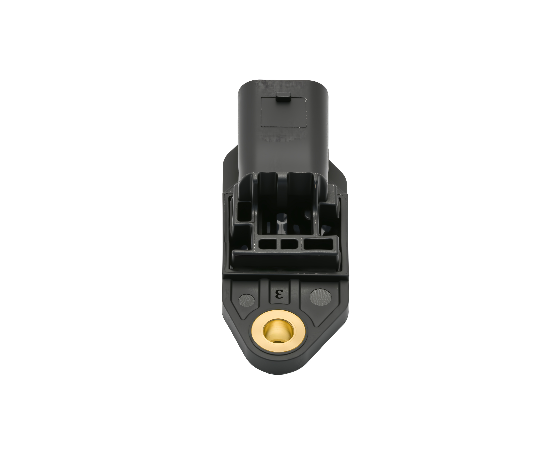

The neutral and reverse gear sensors are installed in the way of locating pin and bushing, and the bushing can be fixed with bolts to be fixed on the transmission shift mechanism. The sensor is composed of a connector and a shell. The connector contains a terminal and the shell contains a bushing. The two parts are filled with glue after mechanical assembly. The structure is simple, convenient, durable and reliable.
The sensor adopts the latest melexis3d Hall chip, which can sense the change of magnetic field angle. The sensor and magnet have special magnetic circuit design to realize the different requirements of the sensor for detecting reverse / neutral / forward gear. The R gear is realized by a reverse magnet.
The neutral and reverse gear sensor and magnet are installed on the shift structure of the manual transmission to detect the neutral, reverse and forward gears of the transmission, and feed back different duty cycle signals to the ECU. According to the signal fed back by the sensor, ECU will give instructions such as turning on the reversing lamp. The matching use of sensor and magnet can be used for the detection and monitoring of neutral / reverse / forward gear of transmission.
