● no ignition module ● it has the characteristics of small volume and low cost.

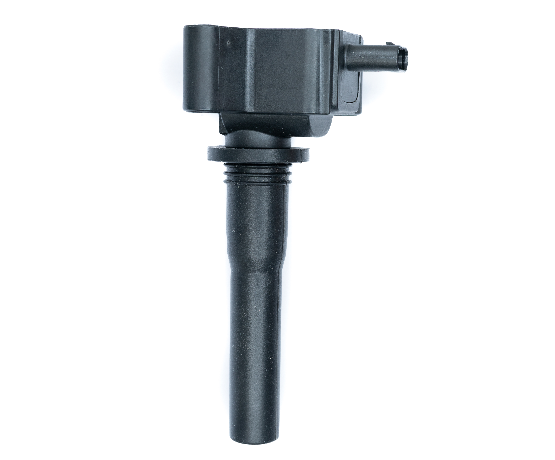

This product is installed on the engine and performs ignition action according to ECU signal. At the same time, the suppression resistance is added at the secondary high voltage output to improve the EMC of the ignition coil; Make it operate safely and effectively.
The engine is compared to the heart of the car to provide power, and the ignition coil is the heart of the engine. The internal structure of the ignition coil is the primary coil and the secondary coil. After receiving the ignition signal from the engine ECU, the primary coil induces the secondary coil to produce high voltage, breakdown the spark plug, ignite the oil-gas mixture in the cylinder and convert it into the power of the engine.
This product is mainly used in ordinary small displacement engines, such as Geely 1.5L, JAC 1.5T, etc.
